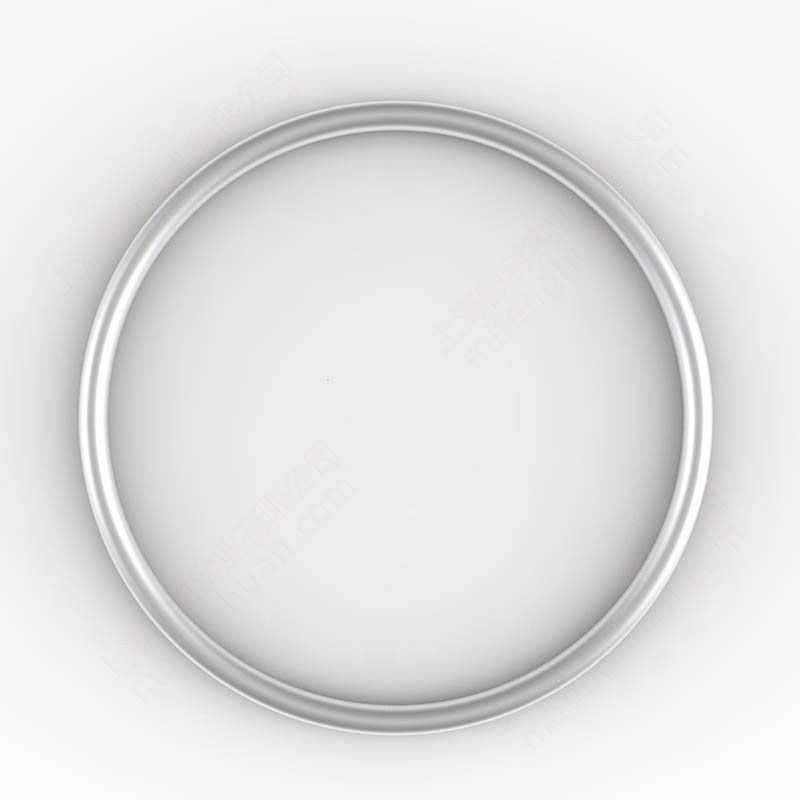

铝O型圈
| 铝O型圈 | Aluminum Seal |
|---|---|
| 型 号： | OR |
| 截 面： | O型 |
| 材 质： | 铝AL1060、铝合金AL6061 |

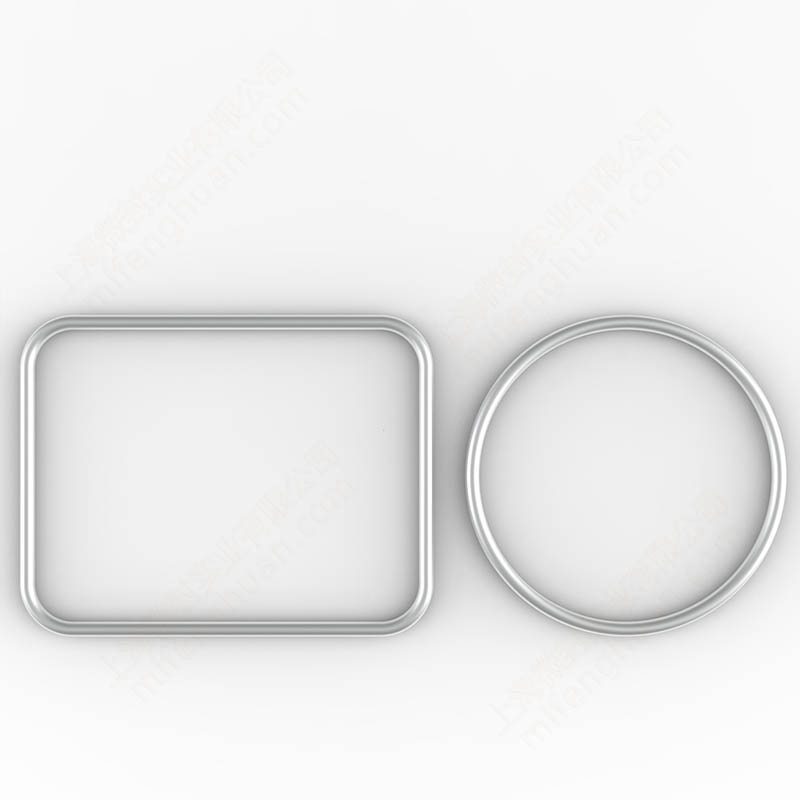

| 外 形： | 圆形、圆角矩形、跑道型、异型 |
| 镀 层： | Null、银* |
| 热处理: | 加工硬化、退火 |
| 尺 寸： | 8~3000 mm，丝径0.5~5.0mm |
| 温 度： | -200℃~+250℃ |
| 压 力： | 真空~5 MPa |
工艺原理：

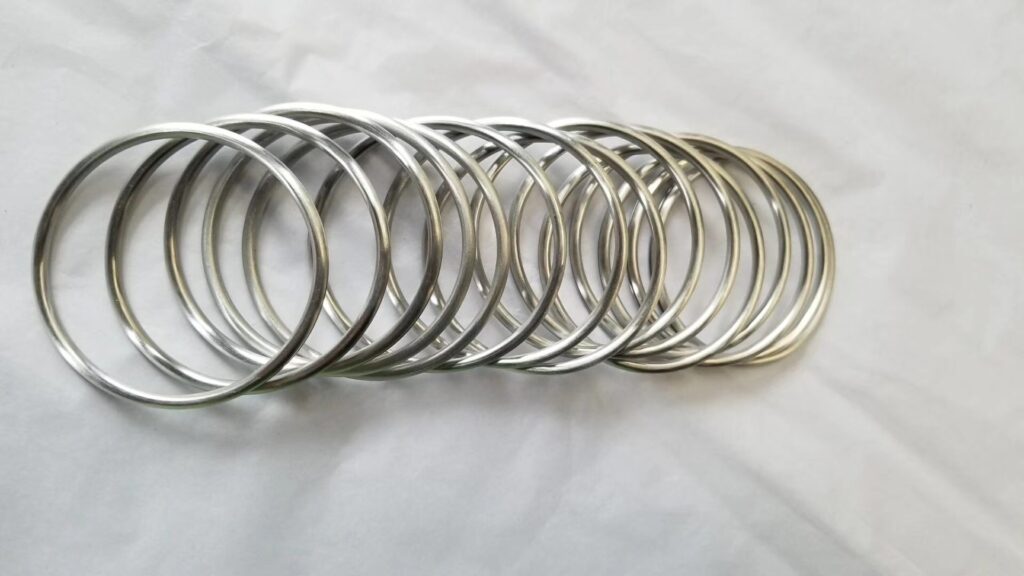

实心铝O型圈由铝AL1060（铝合金6061）丝棒弯曲、熔接而成。热塑化金属管端面，锻压参透熔接，通过精确的尺寸、形状控制成型。通常使用软金属材料加工而成。熔接处理，接口焊缝肉眼不可见。
型号分类：
OR:铝O型圈、铝合金O型圈
表面处理（可选）：
表面镀层、钝化、退火
行业应用：
铝O型圈使用在常温、低温等工况，弥补传统橡胶、塑料等材质密封件的理化性能的不足处。实心铝O型圈通常无弹性或较低，一般不适用大温差循环工况。金属圈表面可镀层，增加密封性。可通过退火降低铝圈硬度。
法兰盖板和凹槽的硬度通常要比密封圈高，针对硬金属密封圈，需要较高的法兰锁紧力。针对软金属密封圈，需要考虑材质流动及法兰深度台阶限位。
High Performance Sealing for Extreme Working Conditions.Crafted from premium soft metal materials, our solid metal O-rings are precision-manufactured through wire bending, welding, and forging penetration fusion welding. Strict dimensional and shape control ensures consistent sealing performance, perfectly making up for the physical and chemical limitations of traditional rubber and plastic seals.Available Models: OR Series Solid Metal O-Ring, Aluminum O-Ring, Aluminum Alloy O-Ring
Optional Surface Treatments: Surface Plating, Passivation, Annealing
Core Advantage: Customizable surface plating effectively enhances sealing tightness for harsher application scenarios.Suitable for critical environments including ultra-low temperature, high temperature, high pressure, and strong corrosive conditions。The hardness of the flange cover and groove must be higher than the sealing ring
Hard metal seals require higher flange locking force
Soft metal seals need reserved flange depth steps to limit material flow during compression
